Laser Diodes - 635nm to 1550nm

MFD-405-100M Fiber Pigtailed Laser Diode

Item No.: MFD-405-100M

Wavelength: 405 +/- 10 nM

Output power: 100 mW

Fiber core diameter: 60 um, N.A.: 0.22

Fiber connector: FC, ST, SMA-905

Threshold current (Ith): < 35 mA

Operating current (Iop): < 120 mA

Operating voltage (Vop): 4.8 V

Reverse voltage (Vre): 5 V

TEC max. current: 1.8 A

TEC max. voltage: 3.2 V

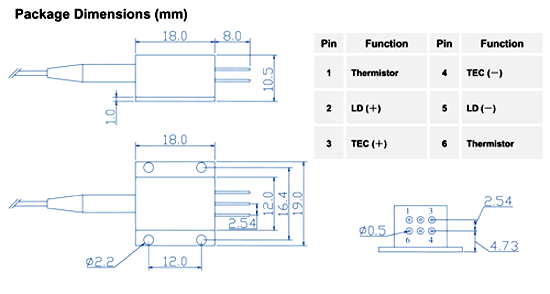

Pigtailed Laser Diode

Disclaimer: The specifications are subject to change without notice.
