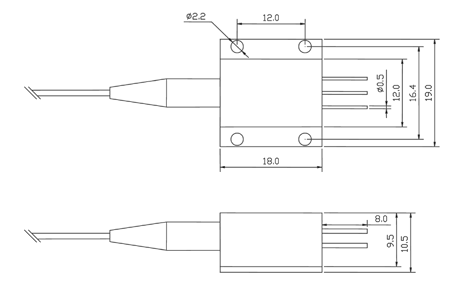

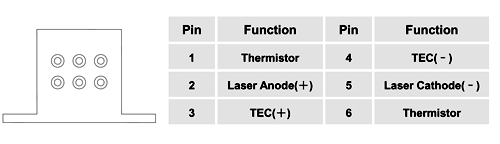

Item No.: MFD-655-80S Wavelength: 655 +/- 5 nM Output power: 80 mW Fiber core diameter: 4 um Fiber connector: FC N.A.: 0.11 Package: DIP LD Threshold current (Ith): < 60 mA LD Operating current (Iop): < 200 mA TEC max. current: < 1.8 A TEC max. voltage: < 3.2 V

Disclaimer: The specifications are subject to change without notice.
